YZ17434

YZ18517

ST128G4

ST188G9

ST198I1

Characteristics

• Excellent weather resistance
• Special look (SVP)
• Excellent chemical resistance
• Excellent workability
• Excellent corrosion

Dry film thickness

• Top side: primer: 10μm , finish: 15μm
• Back side: 5μm

Test results

• Bending test: 2T
• Pencil hardness test: over H
• Impact test: no cracking and peeling
• Gloss: optional
• Solvent resistance: MEK more than 100 times
• Salt spray test: F8 for 1000hrs
• Resistance to chemicals: no change for 24hrs with 5% NaOH and 5%H2SO4

Main applications

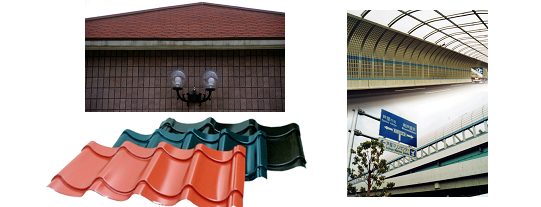

Glazed tiles, roofs and walls of factories and partitions

YZ338A4

YZ32449

SCU1

SGN9

YZ628B8

SDGI

YZ62534

YZ629A1

Characteristics

• Excellent workability
• High gloss
• Choice of colors

Dry film thickness

• Top side: primer: 10μm , finish: 15μm
• Back side 5μm

Test results

• Bending test: 1T
• Pencil hardness test: F～H
• Impact test: no cracking and peeling
• Gloss: optional
• Solvent resistance: MEK more than 100 times
• Resistance to chemicals: no change for 24hrs with 5% NaOH and 5%H2SO4

Main applications

Refrigerators, washing machines, microwave ovens, air conditioners, electrical home appliances

SZ188F3

SZ189A5

SZ189A4

SZ188I2

Characteristics

• Choices of pattern and color
• Seemingly look like natural wood and stone grain
• Excellent corrosion resistance
• Excellent weatherability
• Excellent flame resistance

Dry film thickness

• Top side coating:more than 25μm

• Back side coating: 7μm

Test results

• Bending test:within 2T
• QUV test:over 1000 hrs
• Salt spray test:over 1000hrs(5%)
• Degree of gloss：Optional

Main applications

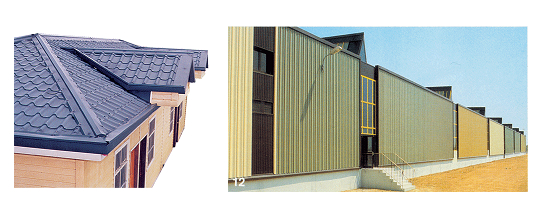

Wooden cabin, Camouflage structure, Wall or roofing panel, Siding, Household appliance

Characteristics

• Titanium stainless like
• Choice of color
• Choice of color
• Excellent scratch resistance

Dry film thickness

• Top side: 10μm

• Back side: 7μm

Test results

• Bending test: 2T
• Pencil hardness test: 2H
• Impact test: no cracking and peeling
• Gloss：90%↑
• Solvent resistance: MEK more than 100 times
• Resistance to chemicals: no change for 24hrs with 5%NaOH and 5%H2SO4

Main applications

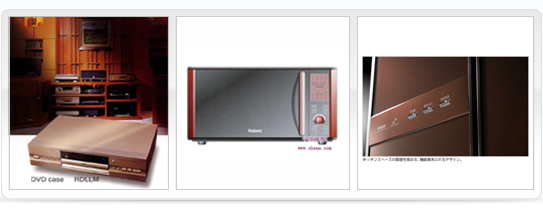

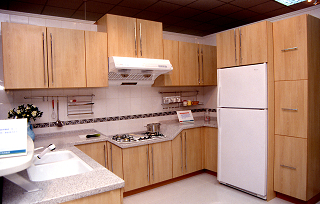

Refrigerators, kitchen cabinets, elevator decorations, electrical home appliances

GOLD

COPPER

ROSE GOLD

ORIGINAL COLOR

Characteristics

• Choice of pattern and color & Excellent corrosion resistance
• Excellent workability
• Excellent chemical resistance
• Excellent weather resistance

Dry film thickness

• Top side:primer:5 μm , finish: 100~300μm
• Back side: 5μm ,Back coat：PVC Plastisol 100μm or Epoxy 7μm

Test results

• Impact test: no cracking and peeling
• Gloss：55%
• Resistance to chemicals: no change for 240hrs with 5% NaOH and 5%H2SO4
• Salt spray test:over 1000hrs(5%)
